MAGICAL BRIDGE INTERACTIVE MAP DESIGN PROGRESS

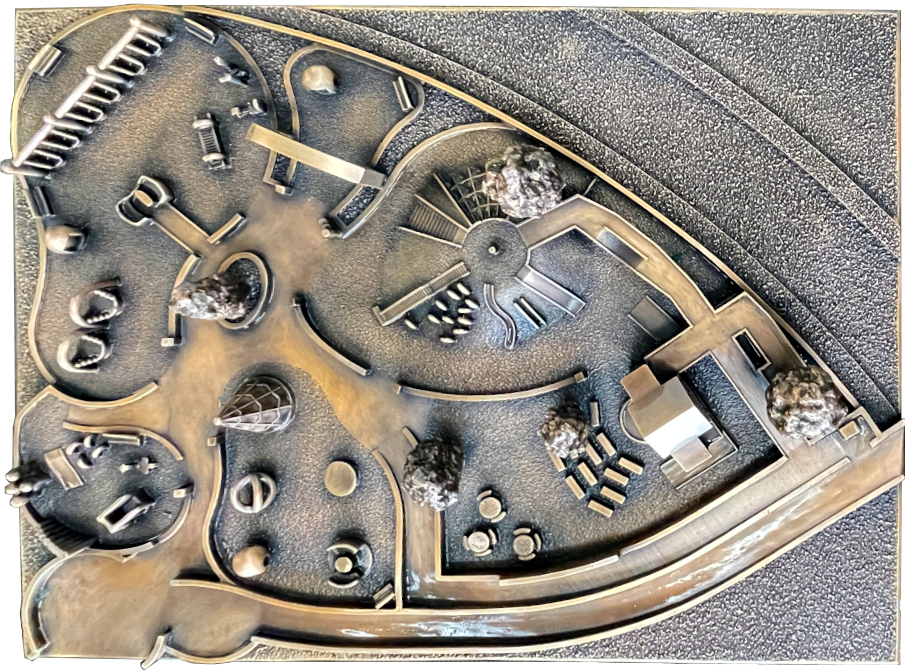

20220509: PATINA REVIEW

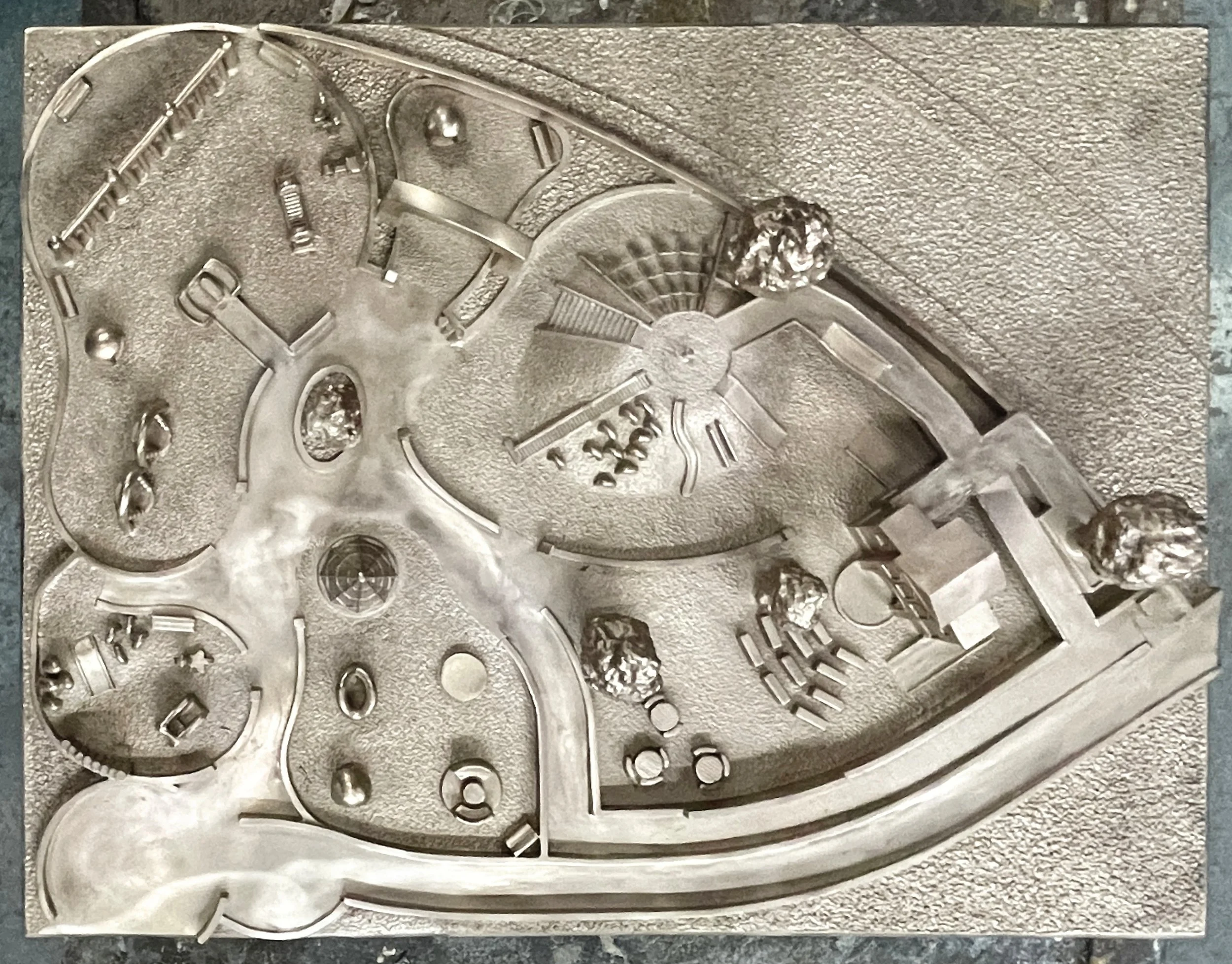

20220503: CHASING REVIEW, READY FOR PATINA

Bronze cast, chasing nearly complete, ready for patina

20211117: FINAL CONCEPT RENDERS

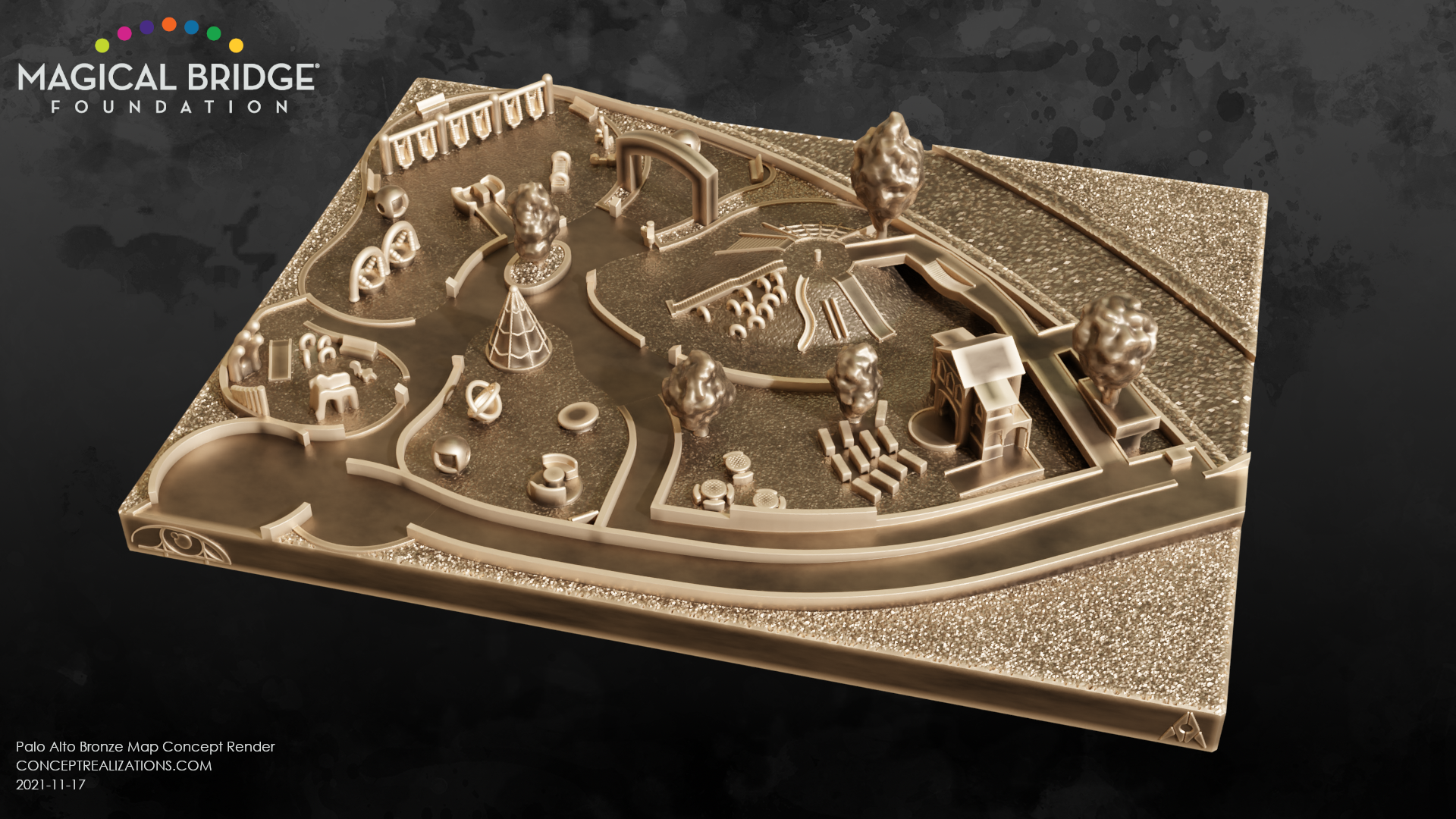

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0001.png

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0002.png

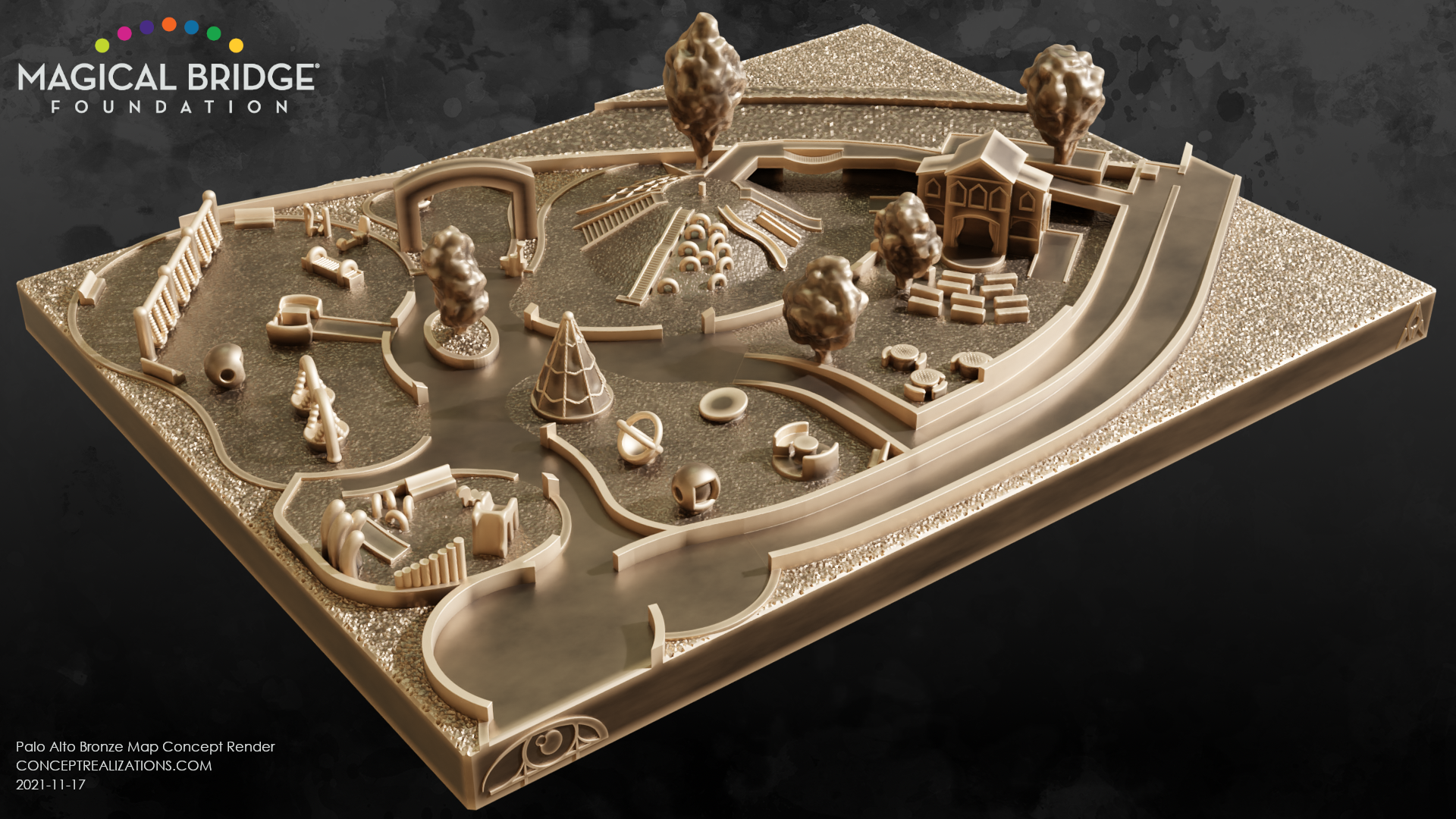

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0003.png

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0004.png

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0005.png

20211117 MAGICAL BRIDGE PALO ALTO BRONZE MAP CONCEPT RENDER 0006.png

SLIDE MOUND PROTOTYPE

Design for 3D printed prototype for Slide Mound area, to preview overall scale and level of detail to be used throughout the rest of the map.

Click on the image to activate the 3D viewer. Mouse left-click to change viewing angle. Shift+Left click to pan.

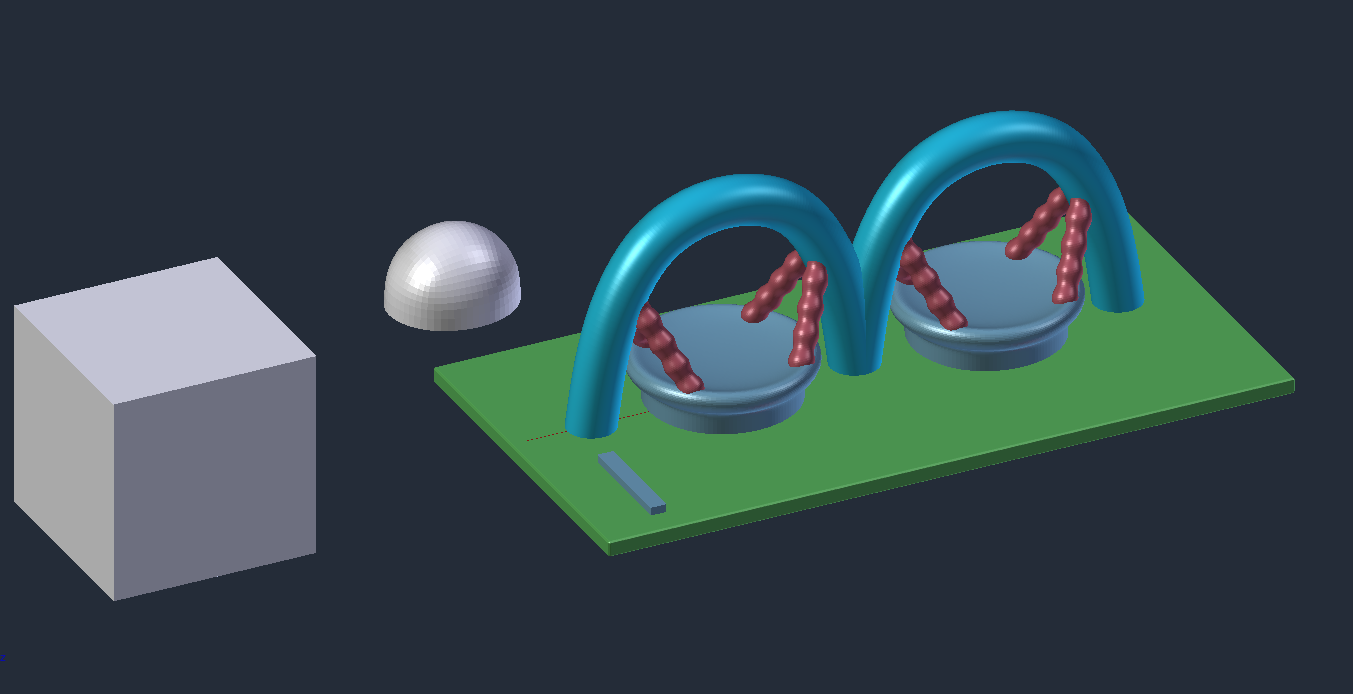

The white cube is for scale reference: it is 1 inch on each side. The white hemispheres are roughly the size of an adult’s fingertip.

The round knob in the center is not part of the model: it represents a typical adult finger, for scale reference. The cube off to the side is a 1 inch on a side, also for reference. - 20200427 SLIDE MOUND PROTOTYPE - 3D model by CosmoWenman (@cosmowenman) [d4c10d3]
